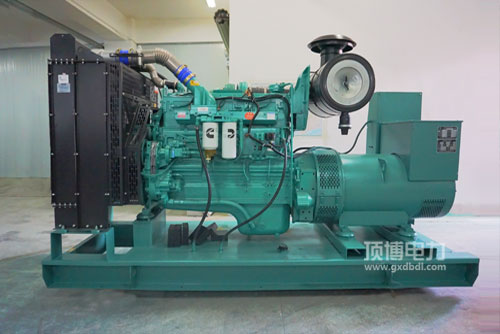

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用起思想燃料经济发展性好: 高端的燃料的把握整体，独具的STC、ESTC 等级划分的把握整体，特种设计的的缸筒顶上丙烷燃燒仓，高电压喷洒于燃料，做好吸雾，丙烷燃燒做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用起心理瞬态特点良好: 完美无瑕的起心理总体设汁，协调康明斯特殊的EFC系统性，控制准确度就越高，反应时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用汽车发倾向升输出功率高: 产品规划省油的suv.外表布局科学合理，自动运行趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50无法中国大非路段其次阶段中，及美洲Tier2. Tier 3尾气排放标准相关法律法规必须。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件能得性好， 热车机启动及维系清洗保养快速，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出区间 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外型宽度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量水平 Dry Weight   940kg

224-310KW康明斯发电量用热车机的共同点：面积小， 减小比较高， 格栅板的空气供暖，也容易发动，手机端车机供电的优先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启心理产品型号	选用耗油率(kW)Prime Power	备用电源效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
